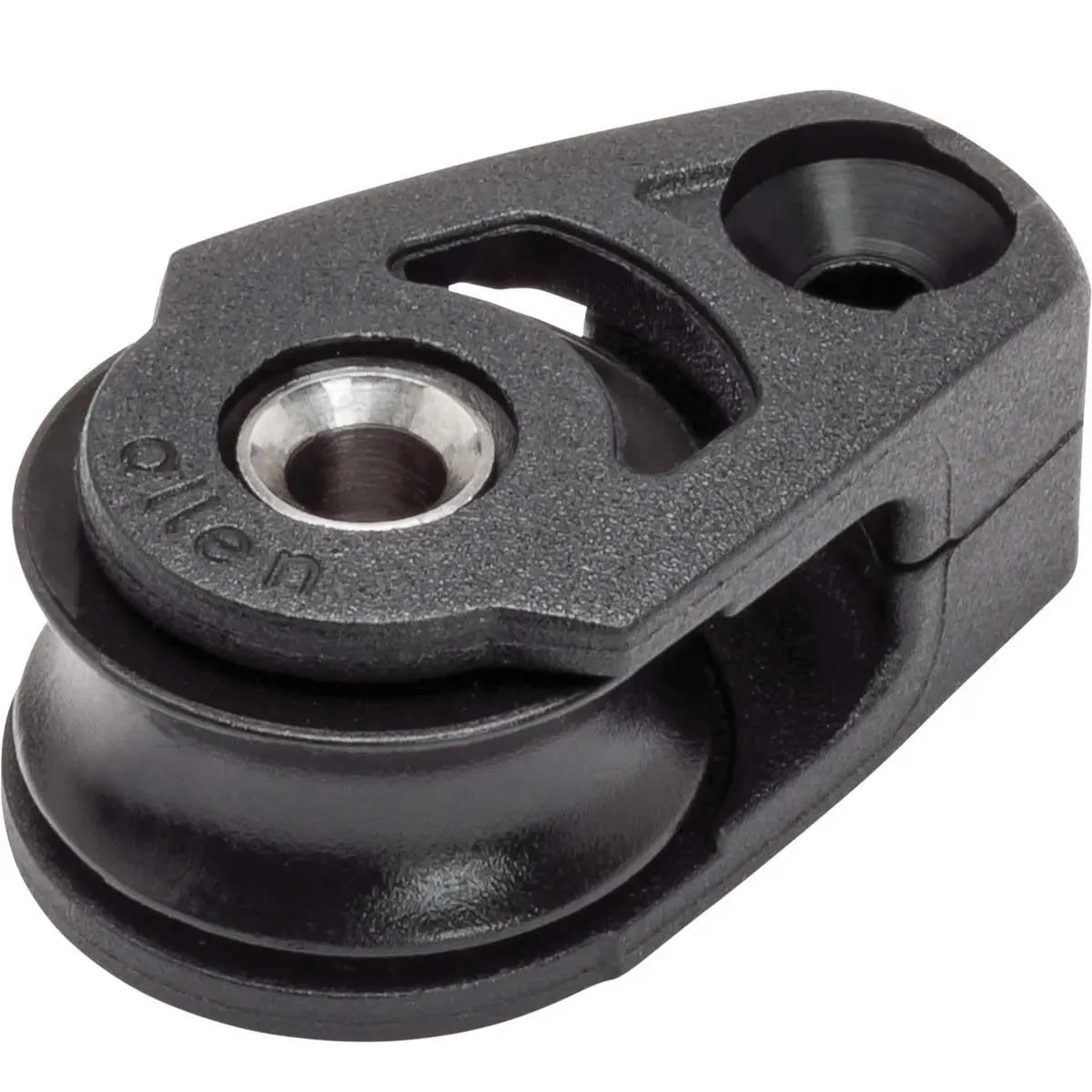

Allen 20mm Single Composite Cheek Block - A2026M
20mm Single Dynamic Composite Cheek Block. Our Dynamic range is generally the best choice for applications that require constant sheave movement.

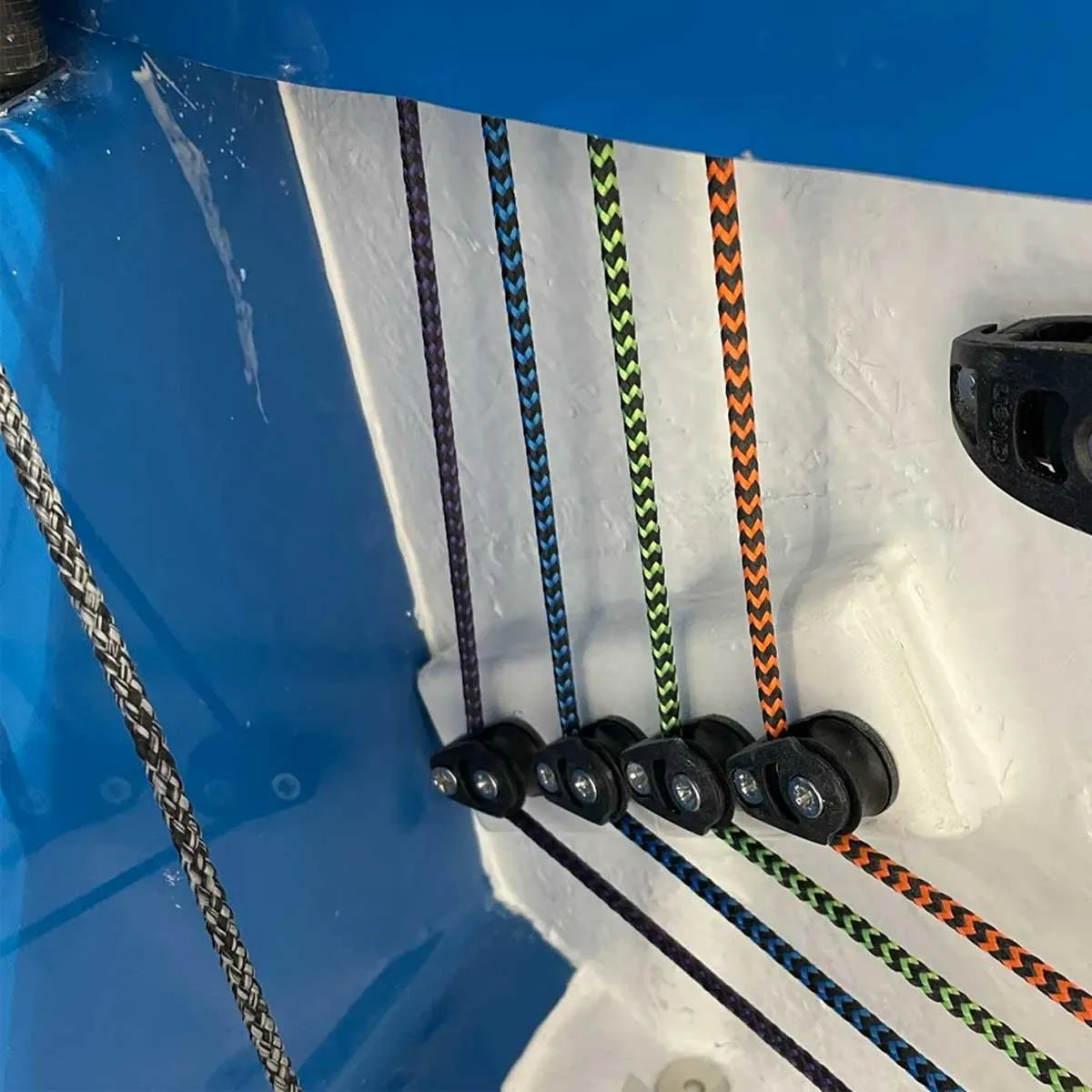

Cheek blocks are designed to be fixed to a flat surface. Ideal for leading lines along a deck, into a cleat or around corners. Held in place by two screws. One screw through the middle of the sheave and the other through the countersunk hole in the head of the block.
Key Features we love

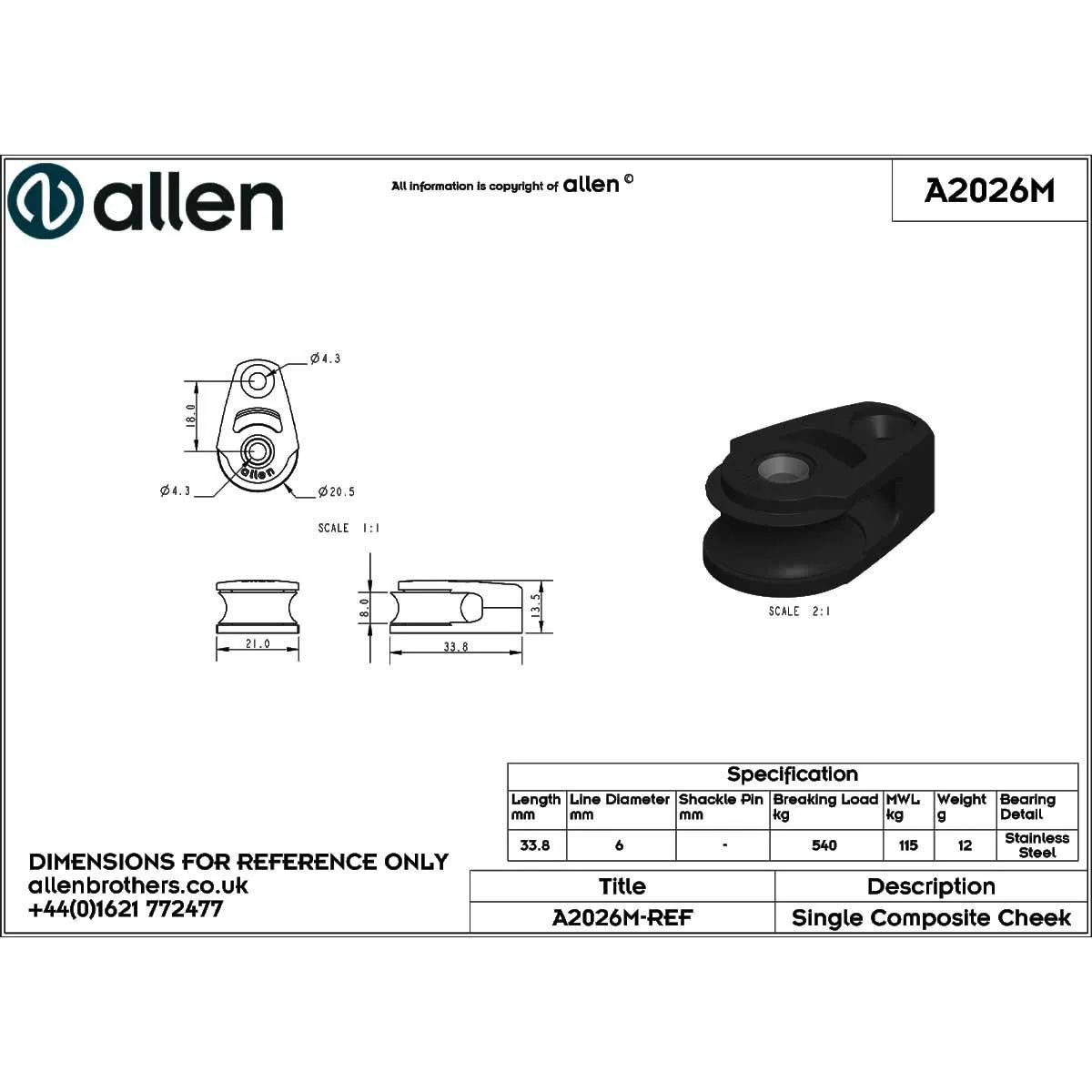

Specifications
- Breaking Load - 540kgs
- Fixing Hole Centres - 18mm
- Length - 33mm
- Max Rope Diameter - 6mm
- Max Working Load - 115kgs
- Weight - 12grams
