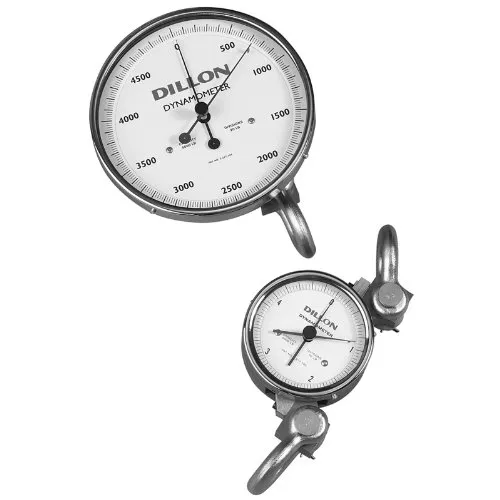

Originally designed to measure the tension on telephone wires, the Dynamometer has proven to have limitless versatility as a tension and weight measuring instrument. It is used for such diverse jobs as suspended weighing; mounting cables for bridges; adjusting tension on guy wires; field testing chain, rope, wire-anything requiring precision force or tension measurement. Long life - the core of the device is a steel flexing beam. The enclosure is a heavy aluminum alloy case with baked on protective finish. The dial face is sealed and cushioned with a rubber gasket. Ultimate safety factor: 5:1. Accuracy: /-0.5 percent of capacity. Temperature range: -50 degree to 140 degree F (-45 degree to 60 degree C). Case housing: It is equipped with high strength composite plastic case. Corrosion protection: pressure bar protected with durable powder coat paint. Shackles and pins are electroless nickel plated. All integral machining and fasteners are produced from noncorrosive materials or have suitable plating. Zero control: zero up to 20 percent of capacity. Zeroed load must be considered as part of ultimate load. Calibration: traceable to NIST. Documentation: includes user's guide and signed calibration card. Plastic carry case/crate. Periodic proof loads: controlled 150 percent proof loads permitted annually. Size: 2000lbs capacity, 20lbs division size.

• Package Dimensions ‏ : ‎ 13.4 x 8.9 x 4.4 inches; 0.01 ounces
• Date First Available ‏ : ‎ May 11, 2012
• Manufacturer ‏ : ‎ Dillon
