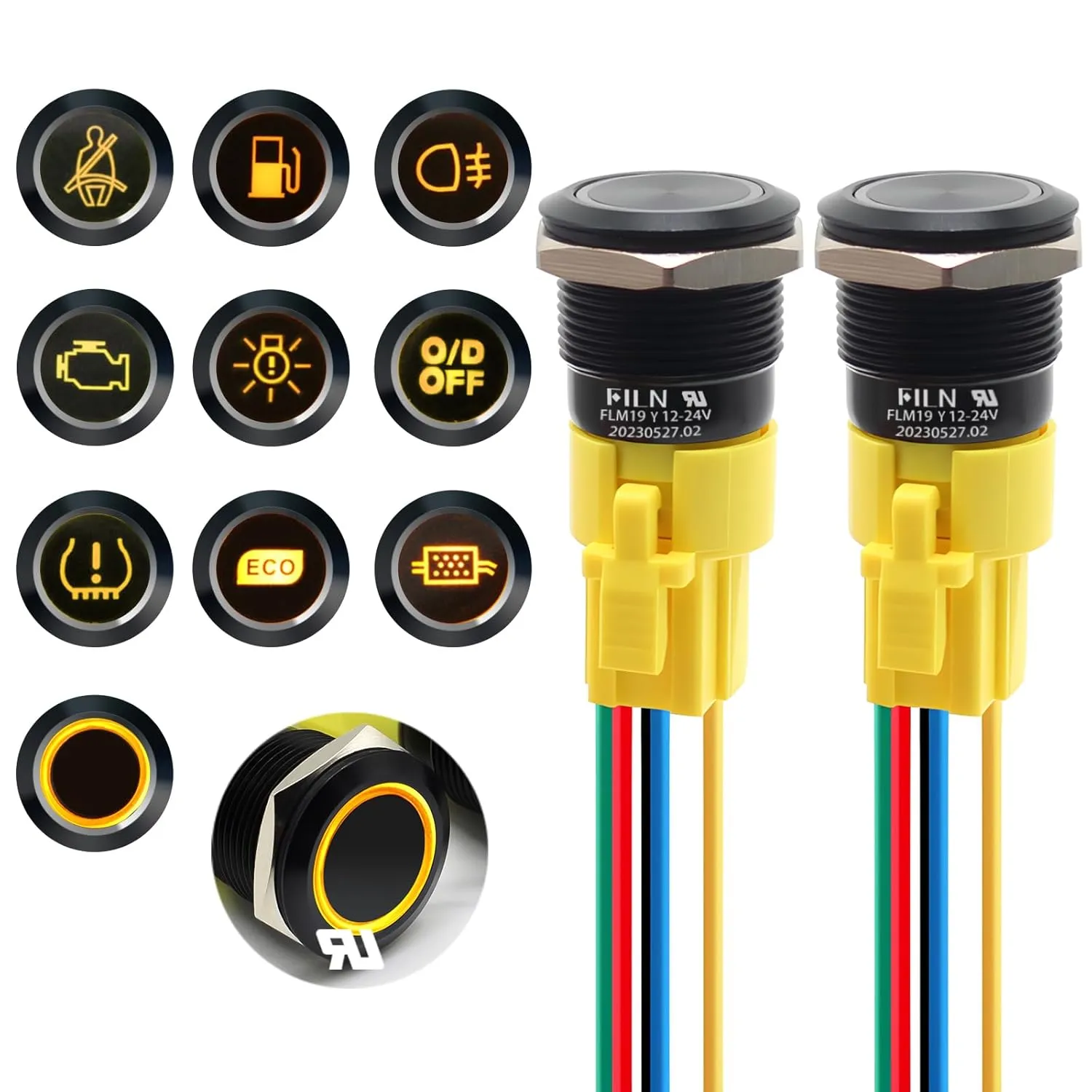

Name: 2PCS 19mm (3/4'') Latching Push Button Switch Latching 12V 24V DC On-Off with LED Symbol Head for Mounting Hole 1NO1NC with Wire Socket Plug Black Plated
SKU: 722038

[Push Button Switch Contact Configuration]:momentary:Push button it and finger keep it ON,finger release, it come back itself,OFF.latching: Push it, ON; Push it again, OFF. 1NO1NC One piece Package include common symbols of corresponding colors

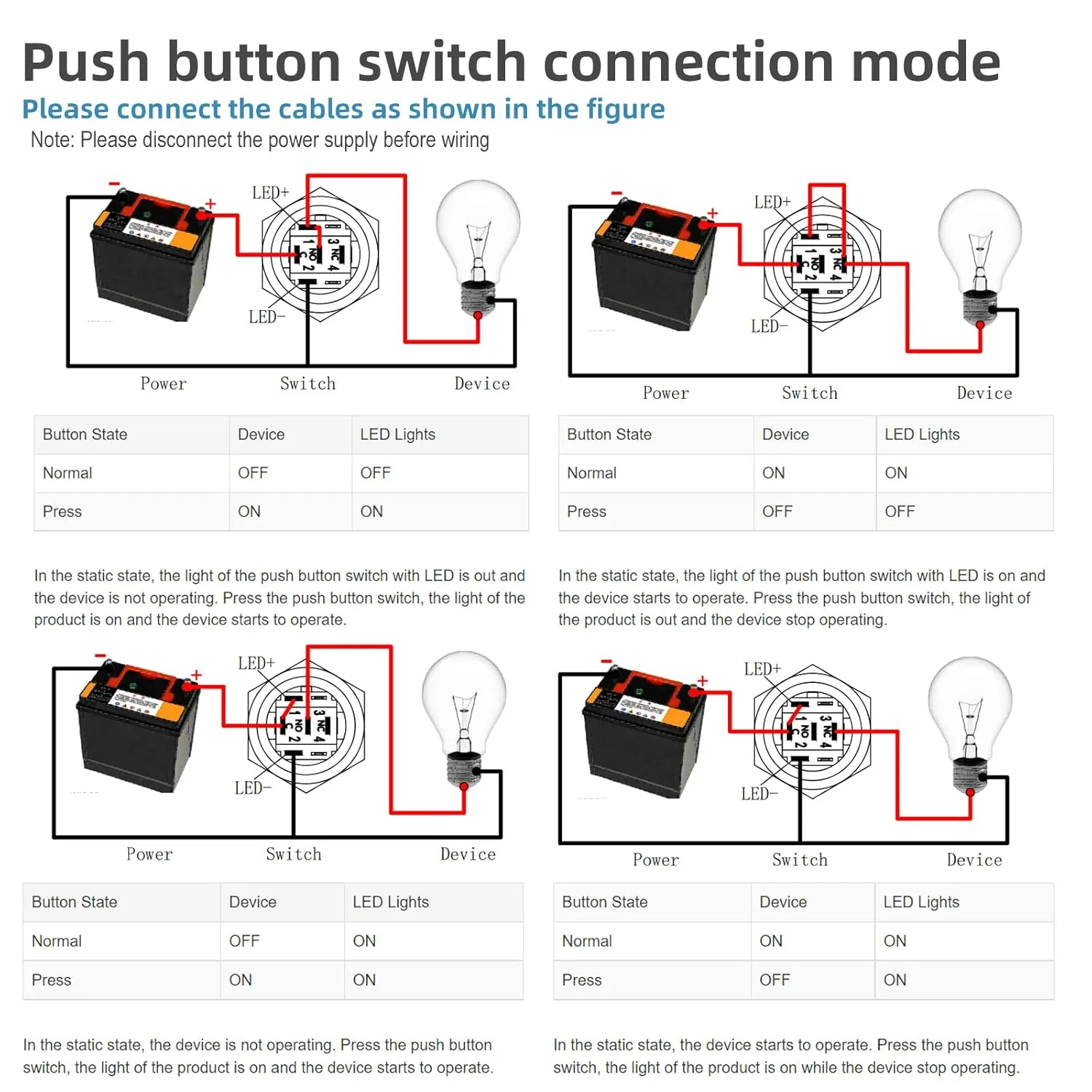

[2 ways for wiring]:1.LED Light Always ON.2.Push the Button, LED ON.
[High Quality Metal Material]:1.Silver Body Color:304 Stainless Steel, Anti Corrosion.2.Black Body Color:Andozed Aluminum alloy,Matching your Panel.

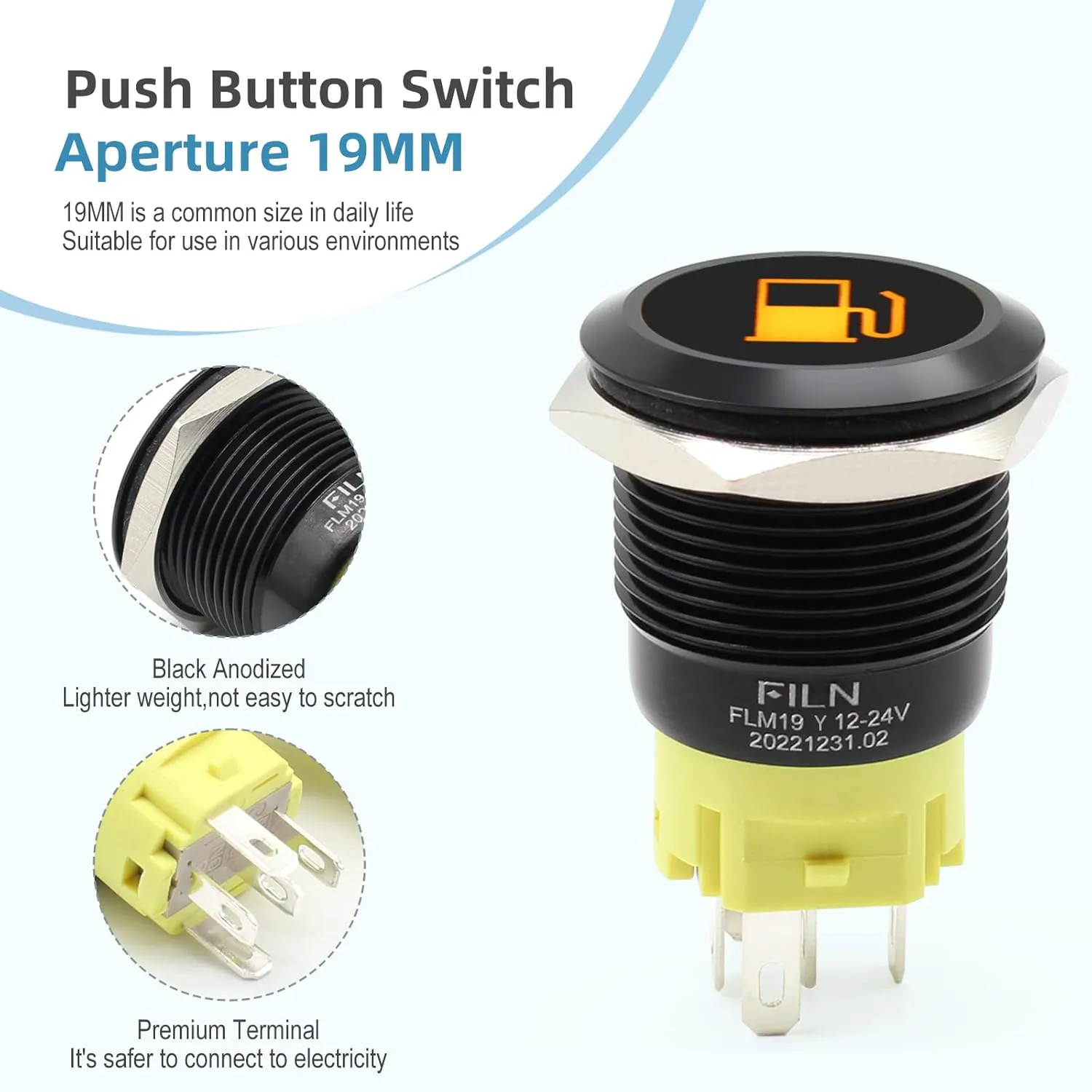

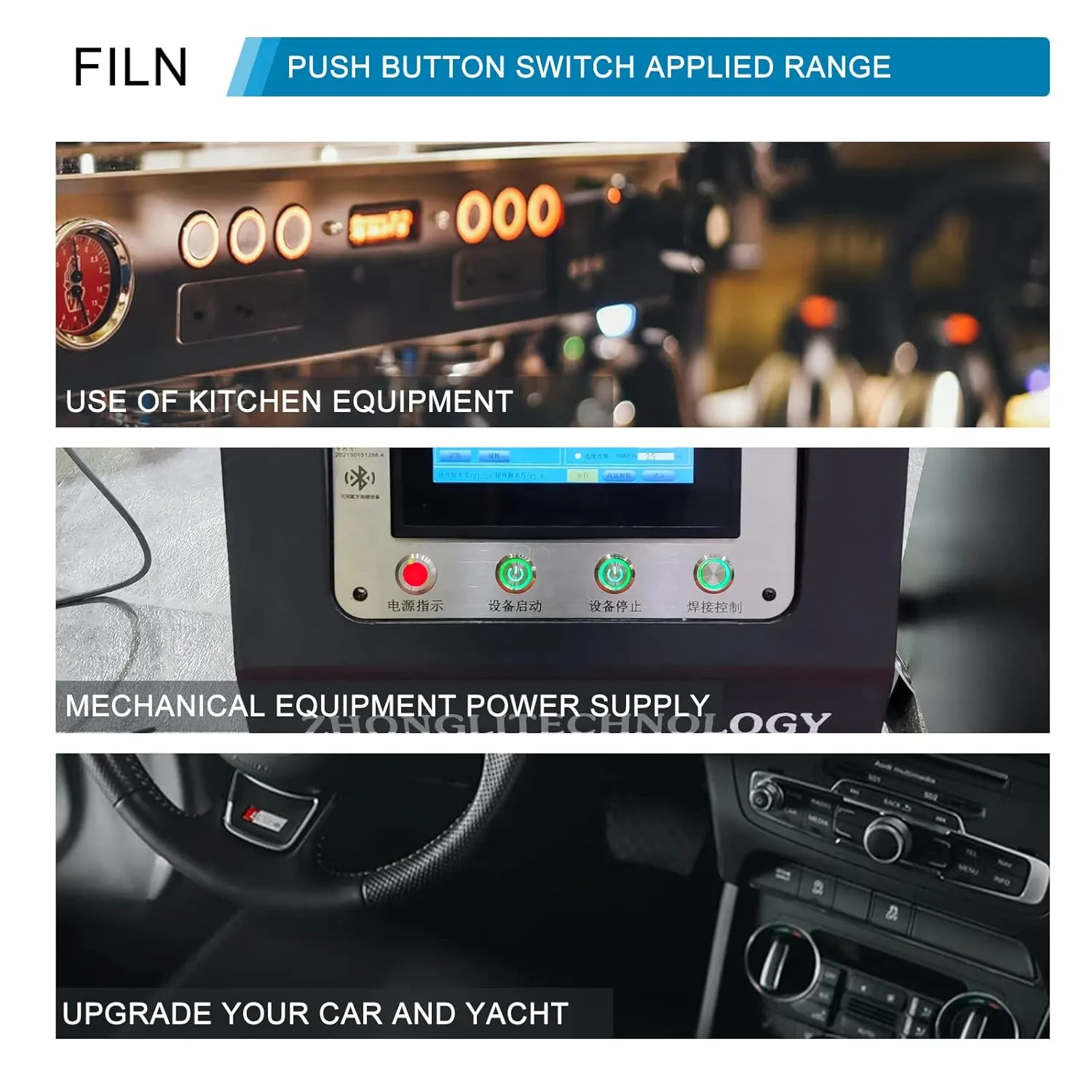

[Wide Applications]:Mounting hole：19mm(3/4'')12-24VDC Push Button Switch is applicable to automobiles, computers, instruments, doorbells, household appliances
[FREE symbols]：IP65 Degree,can be used in wet or dusty environment. Connect Socket:Include connect socket with 20cm Free Wire.
[Electrical life]:push button switch 2-3 years warranty Mechanical life: 1,500,000 cycles
[Push Button Switch Material]: Black Shell to increase the wiring beam for convenient wiring

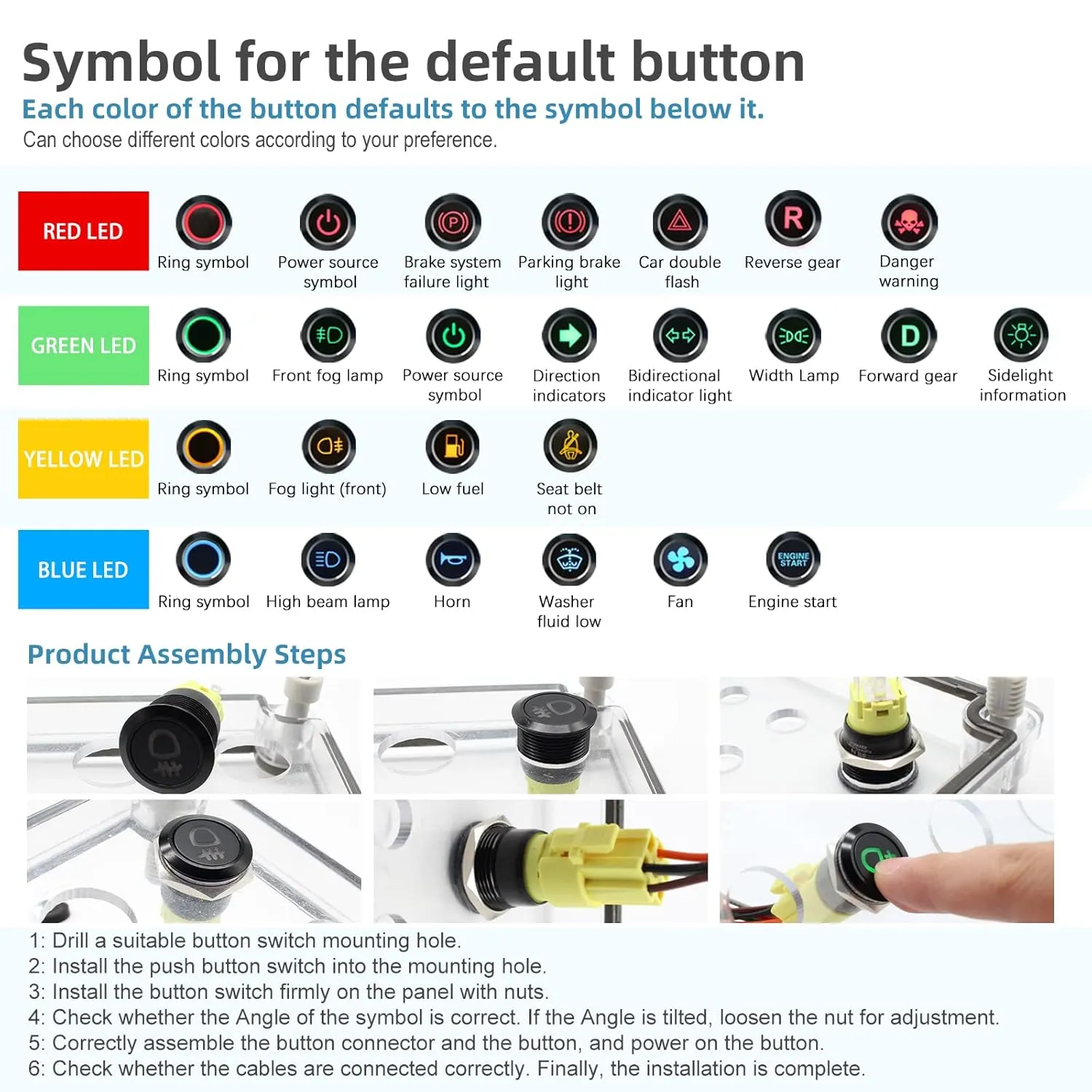

[Internal included]: 2PCS Push Button Switch and Subtracts and Symbols with a suitable symbol assembly for each color

Package Dimensions ‏ : ‎ 4.65 x 3.23 x 1.02 inches; 1.76 ounces
Date First Available ‏ : ‎ January 5, 2023
Manufacturer ‏ : ‎ FILN

2PCS 19mm (3/4'') Latching Push Button Switch Latching 12V 24V DC On-Off with LED Symbol Head for Mounting Hole 1NO1NC with Wire Socket Plug Black Plated

Product Details
